Fast and Easy Installation
Complete Sealing and Insulating
Mechanical and Environmental Protection
Cross Reference Chart |
| > Thin Wall Tubing |
| > Dual Wall Tubing |
| > Medium/Heavy Wall Polyolefin |
| > High Ratio 6 to 1 Polyolefin |
| > Wire Identification Marker Sleeve |
| > Busbar Insulation Tubing |
| > Communication Products |
| > Molded Parts |

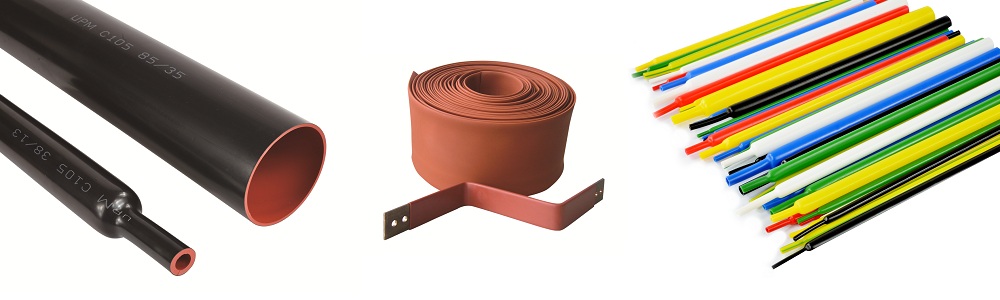

Union Polymer Heat Shrinkable Products Selection Chart
| Product Name | Product Description | Shrink Ratio | Operating Temperature | Cross-Reference |
|---|---|---|---|---|
| Union Polymer Thin Wall Tubing Without Adhesive | ||||
| UPTW201 | Thin wall flexible polyolefin for general purposes | 2:1 | -40C to 125C | CPX 100 |
| UPTW301 | Thin wall flexible polyolefin for general purposes | 3:1 | -40C to 125C | CPX 300 |
| UPTWFR | Thin wall flame retardant polyolefin | 2:1 | -55 to 135C | CPX 876 |
| UPTW-Y/G | Thin wall Yellow/Green polyolefin for electrical grounding | 3:1 | -40C to 125C | CPX 201 |
| UPGRIP | Patterned grip heat shrinkable tubing | 1.8:1 | -55C to 110C | - |
| UPDR25 | Diesel resistant elastomeric heat shrinkable tubing | 2:1 | -75C to 150C | Deray V25 |
| UPPVDF | Kynar thin wall PVDF heat shrinkable tubing | 2:1 | -55C to 175C | Deray KY175 |
| UPNT | Neoprene heat shrinkable tubing | 2:1 | -70C to 120C | NT, NST |
| UPVT200 | Fluoropolymer heat shrinkable tubing | 2:1 | -65C to 200C | VITON |
| Union Polymer Dual Wall Tubing (Adhesive-lined) | ||||
| UPTW-A | Thin wall polyolefin, adhesive-lined | 3:1 & 4:1 | -40C to 125C | CPA 100 |
| UPTWFR-A | Thin wall flame retardant polyolefin, adhesive-lined | 3:1 & 4:1 | -40C to 125C | CPA 300 |
| UPHFTW-A | Thin wall polyolefin with high flow adheseive for sealing multiple wires | 3:1 & 4:1 | -40C to 125C | - |
| UPTW-A FLEX | Very flexible thin wall polyolefin, adhesive-lined | 3:1 | -55C to 125C | W3F2 |
| UPBST | Butt splice tubing for crimp connector (Red, Blue and Yellow) |
3:1 | -45C to 105C | - |
| UPWWT-A | Water clear polyolefin, adhesive-lined | 4:1 | -55C to 110C | CWWT |
| Union Polymer Medium/Heavy Wall Polyolefin | ||||
| UPMW | Union Polymer Medium wall polyolefin | 3:1 | -55C to 105C | CFM |
| UPMW-A | Medium wall polyolefin, adhesive-lined | 3:1 | -55C to 105C | CFM |
| UPMW U-Bolt | Medium wall polyolefin as U-bolt sleeve | 3:1 | -55C to 105C | CFM U-Bolt |
| UPHW | Union Polymer Heavy wall polyolefin | 3:1 | -55C to 105C | CFW |
| UPHW-A | Heavy wall polyolefin, adhesive-lined | 3:1 | -55C to 105C | CFW |
| UPHWFR | Heavy wall polyolefin, flame retardant | 3:1 | -55C to 105C | FCFW |
| UPHWFR-A | Heavy wall polyolefin, flame retardant, adhesive-lined | 3:1 | -55C to 105C | FCFW |
| Union Polymer High Ratio 6:1 Polyolefin | ||||
| UPHR601 | High ratio 6 to 1 polyolefin | 6:1 | -55C to 105C | CFHR |
| UPHR601-A | High ratio 6 to 1 polyolefin, adhesive-lined | 6:1 | -55C to 105C | CFHR |
| Union Polymer Wire/Cable Identification Marker Sleeve | ||||
| UPIDS-HF125 | Halogen-free heat shrinkable identification sleeve | 2:1 & 3:1 | -55C to 125C | HX-SCE |
| UPIDS-135 | Military grade UV protection heat shrinkable identification sleeve | 2:1 & 3:1 | -55C to 135C | TMS-SCE |
| UPIDS-FR | Fluid resistant heat shrinkable identification sleeve | 3:1 | -55C to 135C | D-SCE |
| UPIDS-HT225 | Military grade high temperature resistant heat shrinkable identification sleeve | 2:1 | -55C to 225C | HT-SCE |
| Union Polymer Busbar Insulation Tubing | ||||
| UPTBT | Thin wall busbar insulation tubing (voltage class: 1kV) | 3:1 | -40C to 105C | LVIT |
| UPMBT | Medium wall busbar insulation tubing (up to 24 kV) |
2.5:1 | -40C to 105C | CBTM |
| UPHBT | Heavy wall busbar insulation tubing (up to 36 kV) |
2.5:1 | -40C to 105C | CBTH |
| Union Polymer Communication Products | ||||
| UPFOSP | Union Polymer heat shrinkable fiber optic splice protector (for single fiber) | - | -40C to 60C | CFSP |
| UPRFP | Union Polymer heat shrinkable ribbon fiber protector (up to 12 fibers) | - | -40C to 60C | CRFP |
| UPCS | Union Polymer heat shrinkable cable seal for CATV connectors | 3:1 | -55C to 110C | TCS2 |
| Union Polymer Molded Parts | ||||
| UPEC | Union Polymer End cap | 3:1 | -55C to 105C | CCAP-RL |
| UPCBB | Union Polymer cable breakout boot | - | -55C to 100C | CBR, CCB |
